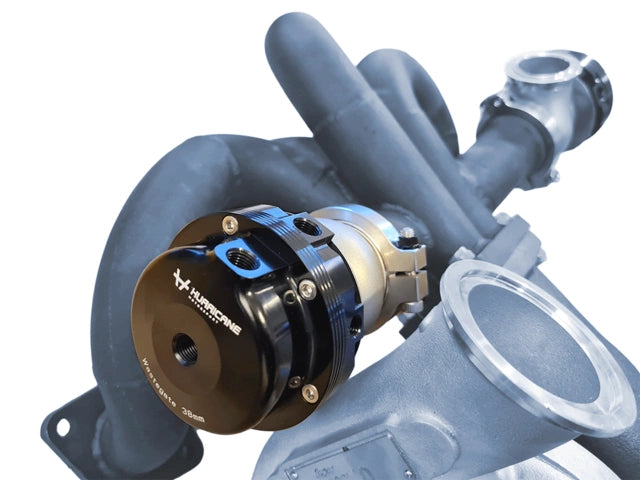

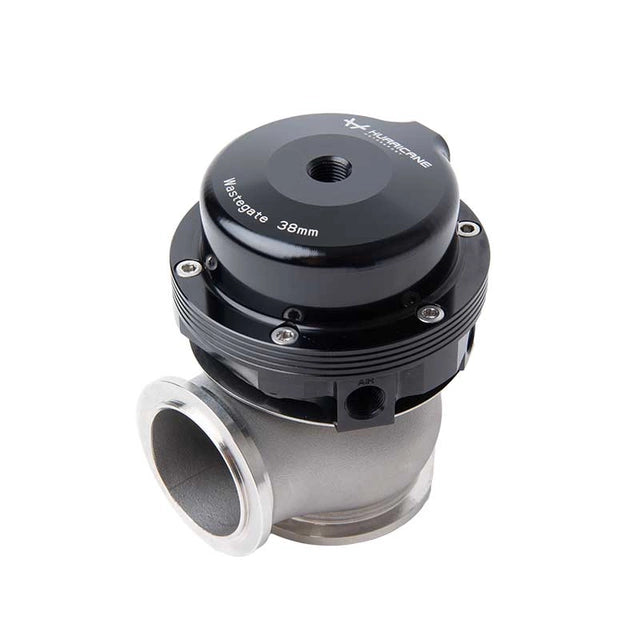

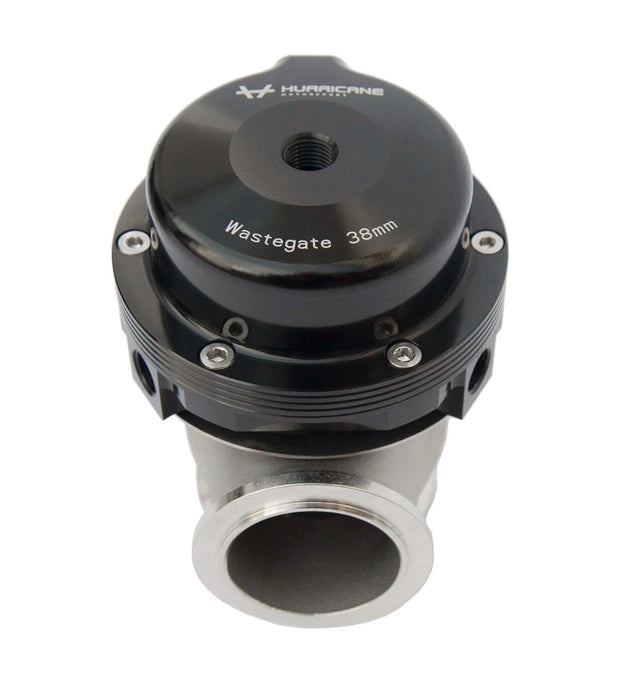

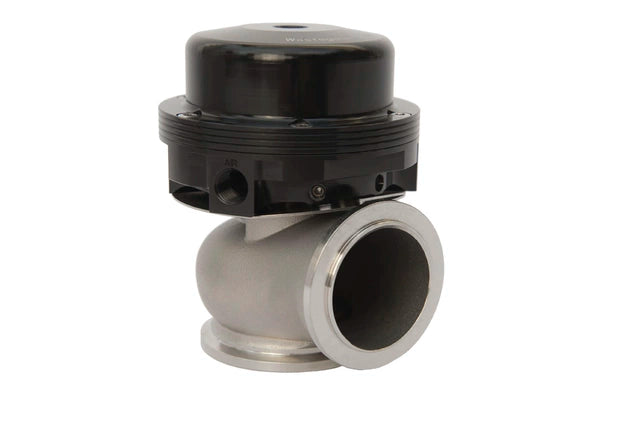

Hurricane Motorsport Wastegate 38mm
Hurricane Motorsport Wastegate 38mm
Hurricane 38mm wastegate is prepared for water cooling but can also be used without water cooling connected. Both milled and cast parts are of high quality. A large membrane surface provides smooth and fast regulation of boost pressure.
A really affordable wastegate that delivers top-notch performance.
The wastegate has multiple inputs for air pressure and back pressure to fit neatly into any installation. Plugs for the inputs you don't choose to use are included.
Product features
• Water cooling
• V-band connections
• Air connection 5pcs M10x1.0
• Water connection 2pcs M8x1.0
Included parts
• Wastegate (Pre-assembled with 1bar (14psi) spring)
• Stainless valve seat
• V-Band inlet
• Stainless weld flange inlet
• V-Band outlet
• Stainless weld flange outlet
• Mounting kit with adapters, plugs, banjos and washer seals.
Dimensions:
Height: 98mm
Diameter: 79mm
Spring setup:
Inner spring
Green - 0.3bar (4.3 PSI)
Yellow - 0.5bar (7.25 PSI)
Middle spring
Red - 0.39bar (5.6 PSI)
Blue - 0.55bar (8.0 PSI)
Outer spring
White - 0.51 bar (7.35 PSI)
Black - 0.62 bar (9.0 PSI)
