Exoracing Quick Release Button 25mm/32mm

Why Should You Use Quick Release Buttons?

Our 25mm or 32mm quick release button latches provide a perfect bumper removal and installation solution. Say goodbye to the tedious process of struggling to remove your bumper due to old broken screws.

With the introduction of our new quick release button, installation and removal have been made effortless with a simple push. The low profile design ensures a secure and easy fit for your bumper, providing a seamless and sleek look.

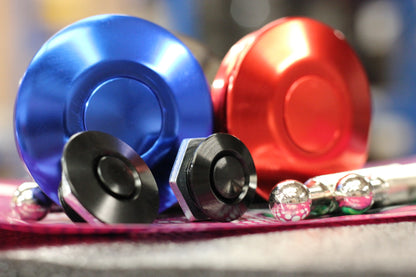

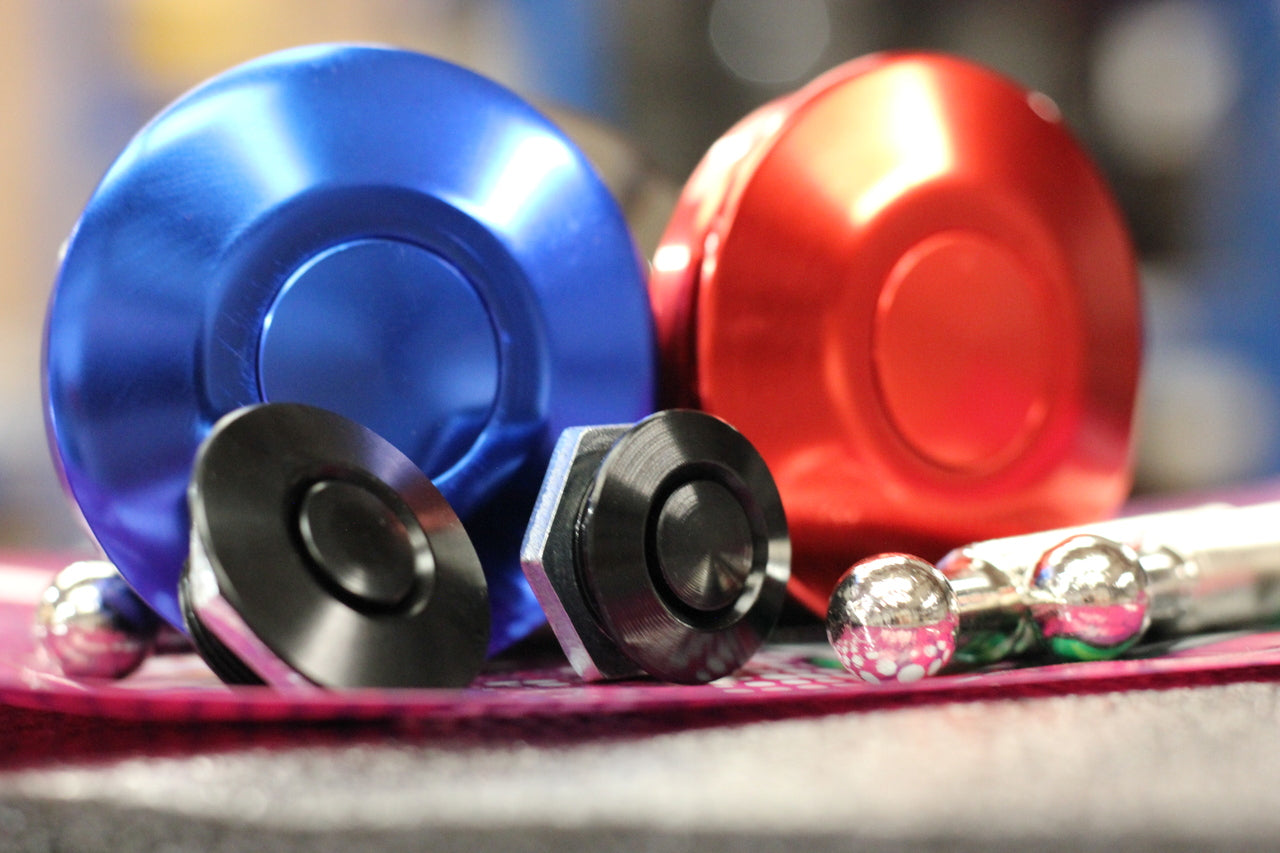

Our quick release buttons come in two parts: the push button and the ball-headed pin, each equipped with a threaded nut for easy installation. The lock feature adds an extra layer of security, making it a reliable option for track cars. We take pride in offering various options for any application, including four colours, two bar lengths, and three head sizes.

To ensure long-lasting durability, all our quick release buttons are anodised and made from high-quality stainless steel, preventing rust or deterioration. We also run these on multiple competition race cars for years and they always work perfectly and save hours of time in the pits.

When installing the quick-release button, you'll hear a positive snap to know when it's perfectly in place and seated correctly.

Upgrade your bumper installation process with the convenience and reliability of quick-release push-button latches. We now offer a lifetime warranty on all of our quick-release buttons, which makes them risk-free from breakages or issues!

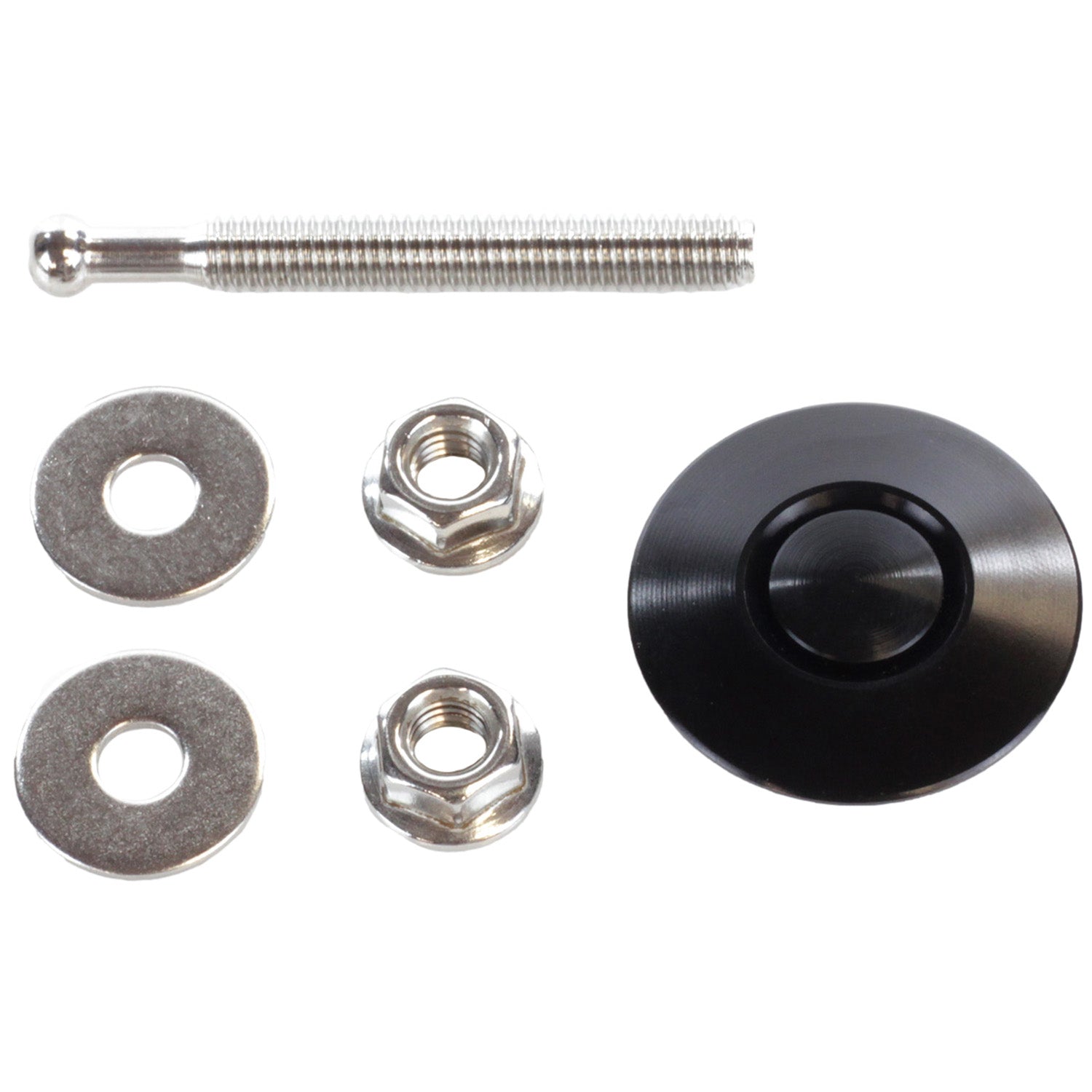

Purchase Includes:

• 1 x Quick Release Button
• 1 x 24mm Threaded Hex Nut
• 2 x M6 Nuts
• 2 x M6 Washers
• 1 x M6 Ball Headed Pin


Features:

• Stops bumpers from coming off while driving or cornering.
• Secure your bumpers quickly and easily
• Comes complete with installation hardware.
• Drilling is required to fit the pin correctly to the bumper
• Manufactured from high-grade billet aluminium and stainless steel
• Head size of push-button latch: 25mm/32mm
• Length of ball-headed mounting stud: 100/54mm
• Available in black, blue, red, and silver
• Exoracing lifetime warranty

Quick Release Button Installation Guide:

We've decided to add a full installation guide here as we have a few questions on the best way to install these. If you are unsure about any steps, please ask a professional to install them.

1. First, you will want to find a suitable mounting location for the ball-headed bar behind where you want to mount the quick release button.
2. Once you've found the suitable spot use a 7mm drill bit (if necessary) to drill the hole for the bar.
3. Adjust the bar to roughly the correct length, and use a supplied washer and m6 nut on either end of the mounting surface, but do not tighten yet; loosely finger tight will be enough to hold the bar in place.
4. Next, get the panel that will house the quick-release button, and using a punch, mark the centre of where you want to drill.
5. Using a 20mm drill bit, drill the hole through the bumper or panel you want to fasten.
6. Remove the hex nut from the back of the quick release button, push the button through the freshly drilled hole and install the Hex nut back on the rear.
7. Tighten the hex nut with a 24mm spanner or socket, and you're all done with the bumper side.
8. Install the bumper or panel onto the car, push the quick-release button into the ball, and wait to hear and feel the click to ensure it's seated correctly.
9. Adjust the mounting screws to the perfect length where the button isn't being pushed or pulled, and you have the perfect fitment; now, tighten both m6 nuts on either side of the bar.
10. You're now all done, and you can repeat this for as many quick-release buttons as you've purchased! Remember to tag us in any photos on social media, as we'd love to see them!

Technical Specifications:

Notes:

• Our Exoracing quick-release buttons are strictly for off-road and race use only.
• Drilling and modification are required to install our quick-release buttons.
• Professional installation is always recommended when trying to install Exoracing products.
